Summary0000711: HDMI port is too outstanding

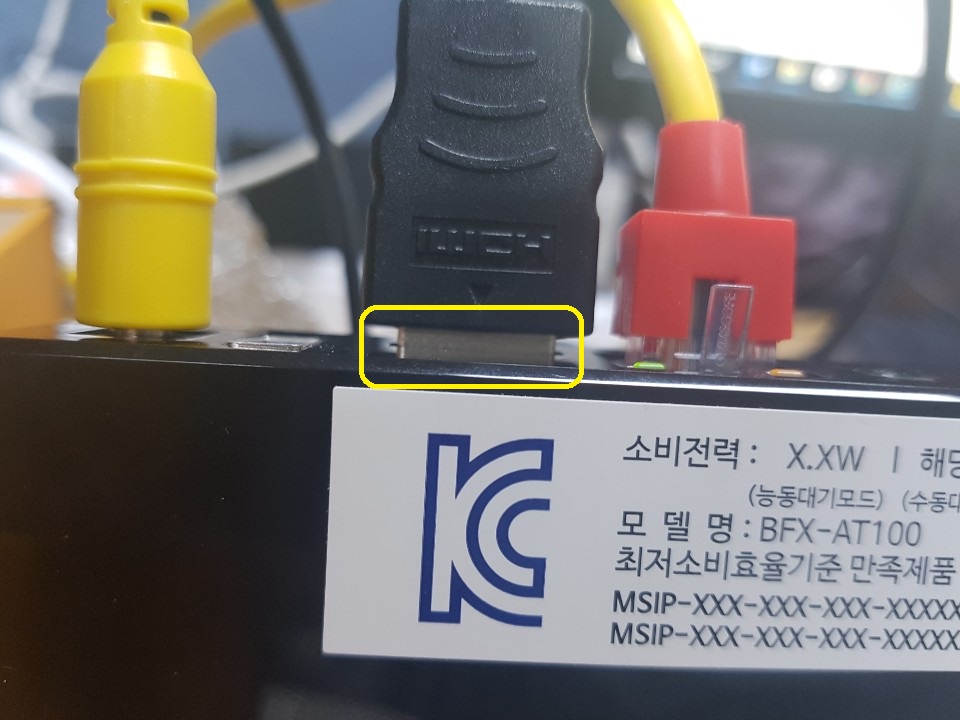

DescriptionHDMI port is too out.
So we can see much metal part when we insert HDMI connector.
Please check attached photo.
SKB can concerning about it.

So could you move inward of HDMI Port, such as USB ?
TagsNo tags attached.
Attach Tags

Users monitoring this issue

User List (ALTech) BY Lee , (ALTech) HY Lee , (ALTech) Philip , (ALTech) SB Park , (ALTech) SH Son , (PM) Sheila Tu

Activities

(ALTech) SY Yoon

2019-05-09 16:59

developer


(HW) Sean Chiang

2019-05-23 11:47

developer   ~0002580

Hi Philip,
We per our discussion last week, we have finished the HDMI side load test and the test result is pass.
Please see attached report in detail.
Below is the test condition. Please check it and let us know if there is any further questions. Thanks.

Insert proper cable to HDMI connector and push the cable in following conditions.
- Push force: 1 kg
- Pushing direction: Upper/Lower/Right/Left (4 directions)
- Number of time:
  Push 1 time for each direction (total 4 times) => 1 cycle
  Repeat 10 cycles
- Pushing method:
  Push the cable 1 second, keep pressing 1 second, and release 1 second
- Power on state
- Pushing position: 8 mm from connector end
T99X171 Reliability Side Load Test.pdf (396,461 bytes)

(ALTech) Philip

2019-05-23 13:18

developer   ~0002583

Hi Sean
thanks for your test result.

i will consider the realiability result of the current our HDMI cable structure.
if i have any other further question. i will let you know it again

(HW) Sean Chiang

2019-07-23 15:17

developer   ~0002848

Hi Philip,

Could you please close this open issue If this issue has been fixed. Thanks.

(ALTech) Philip

2019-07-23 15:30

developer   ~0002849

it's not issued in SKB 1st inspection. so i closed the issue
